Colors
Frame matched to the interior
Available frame colors: black, silver, rose gold.
Wallpanel S10
10-inch Home Assistant wall panel with a larger display, Wallpanel OS, PoE and a proximity wake sensor.
309 EUR
EU B2B order price · VAT status confirmed during order processing · active EU VAT number required
Online EUR ordering and payment is being prepared.
For now, please order by email — we will confirm availability, invoice details and bank transfer payment.
Quantity
Made to order
Made to order, usually around 30 days.
10" IPS1920 × 1200PoE + DC 12 V4 GB / 32 GBProximity wake around 1 m2 × 2 W8-core processorProduct safety
Gallery
Real product photos

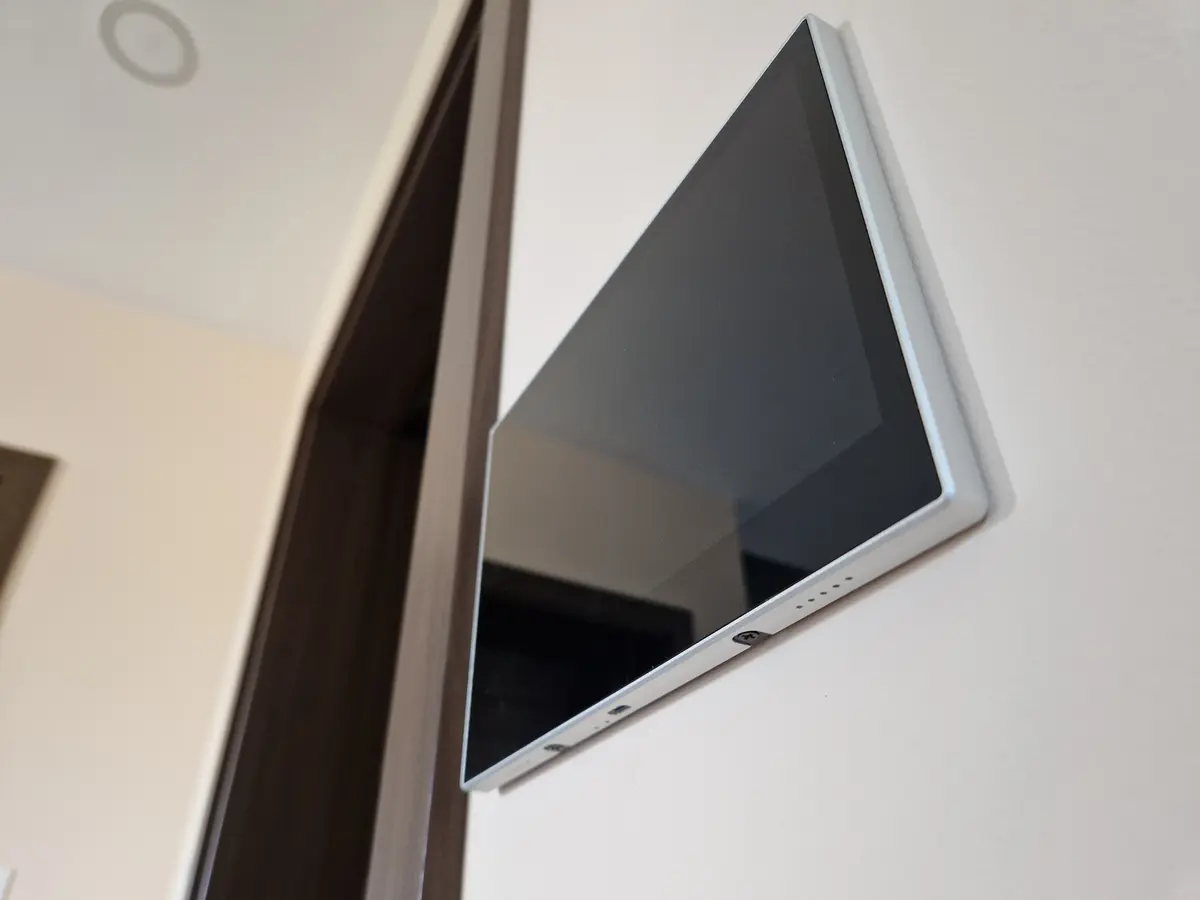

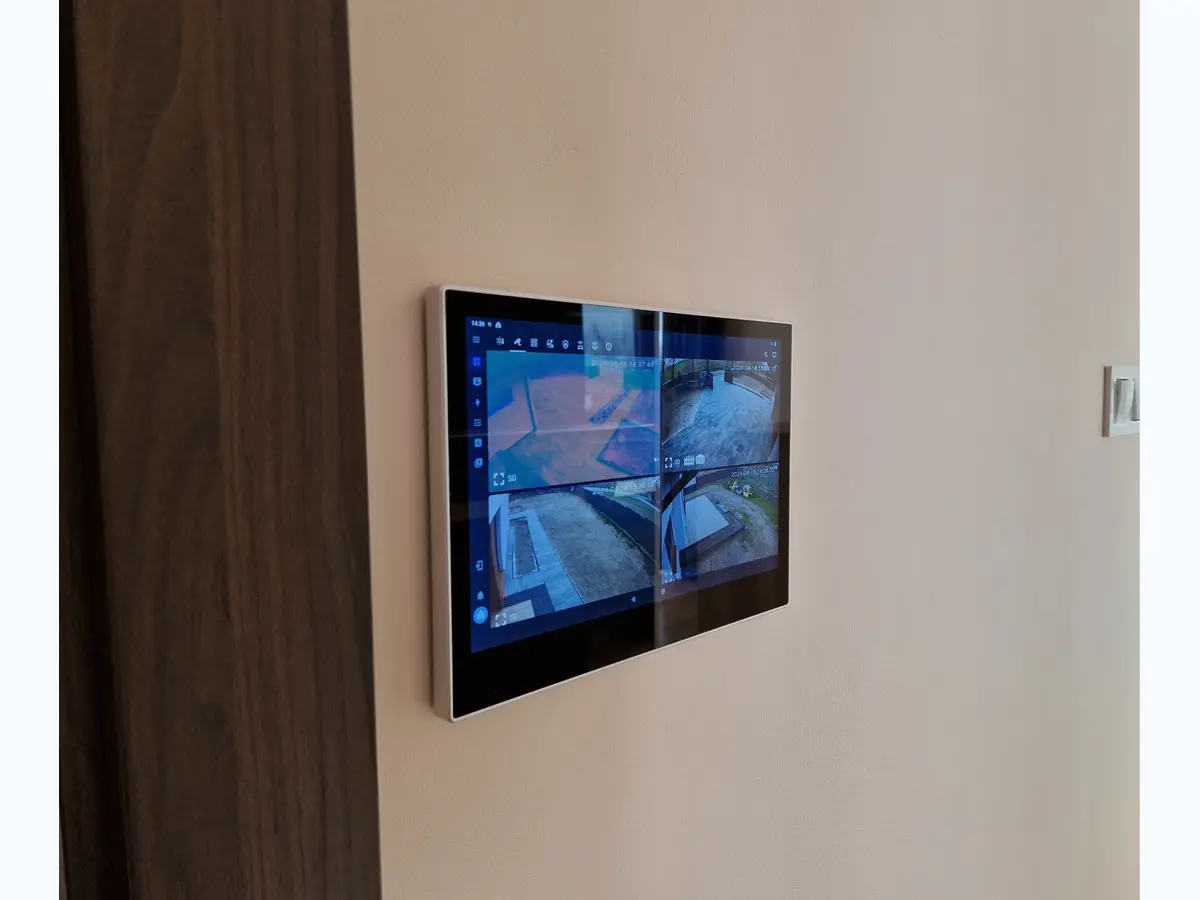

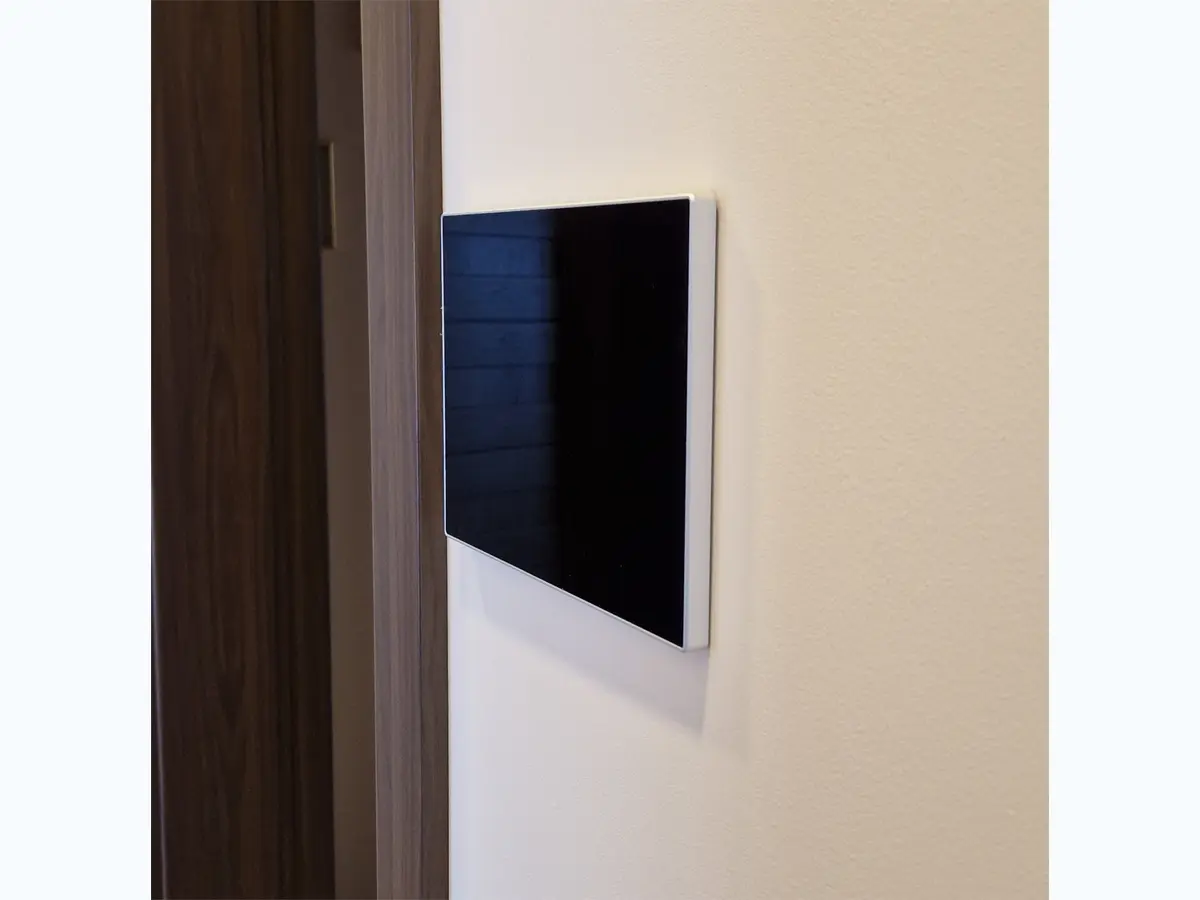

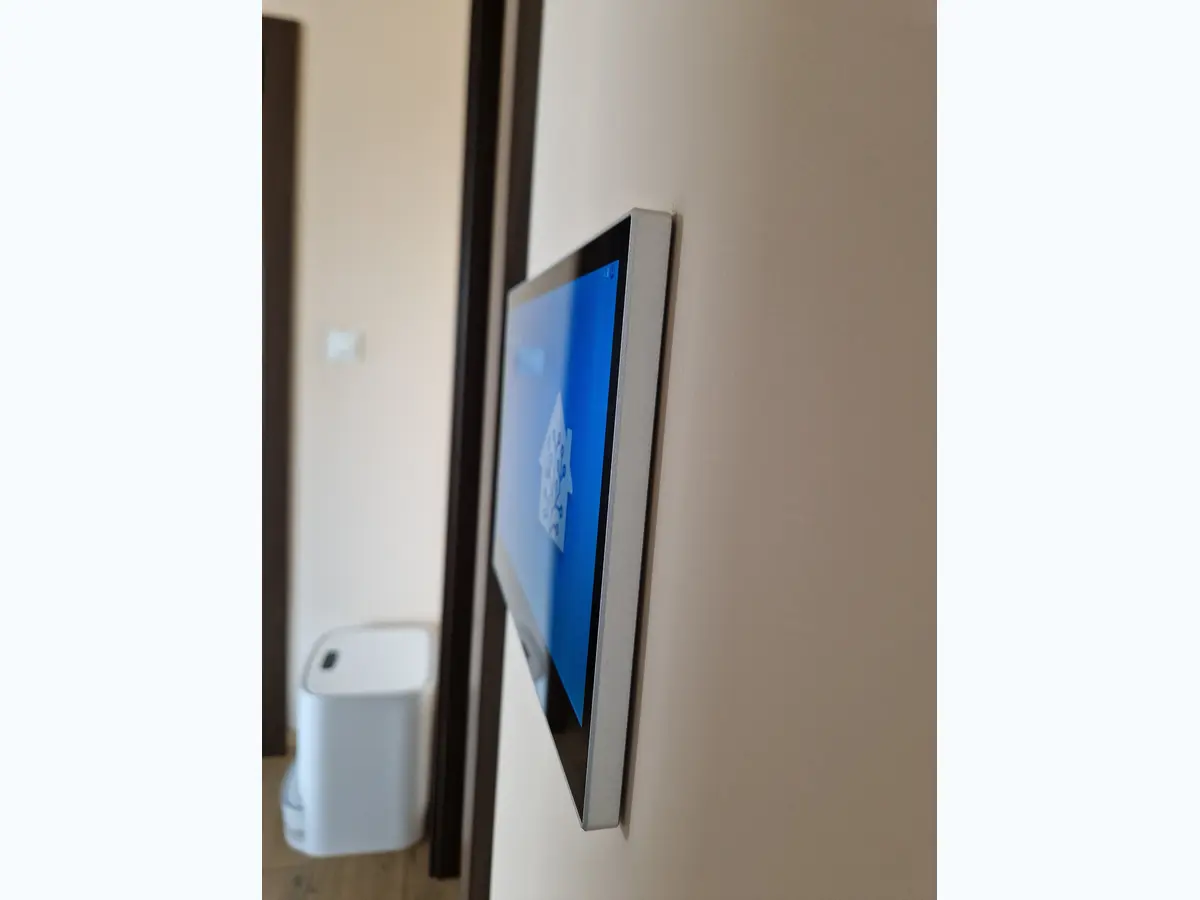

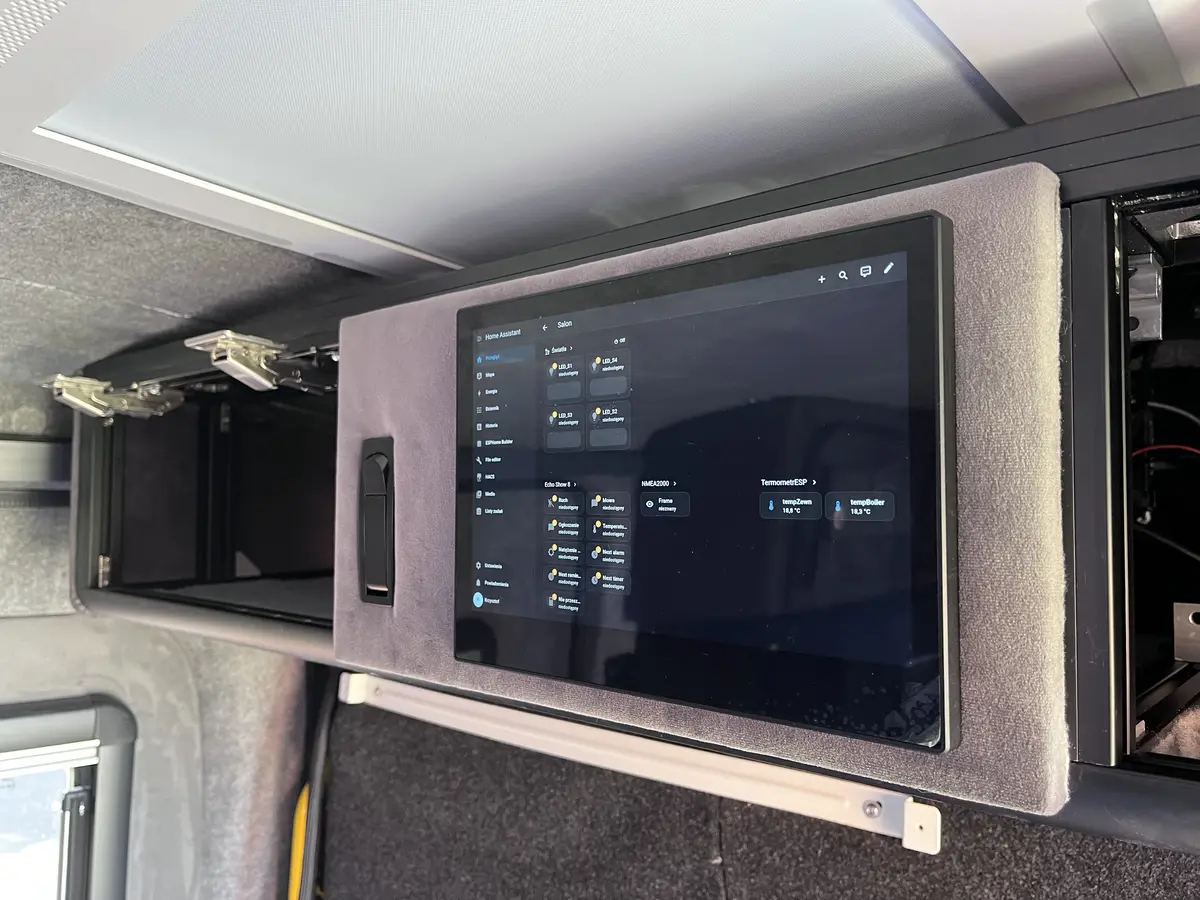

Photos show the real product, mounting context and selected enclosure details.
Overview
Where this model fits
Best as the main home control panel: a larger screen, higher resolution and a proximity wake sensor for waking the display as you approach.
Specifications
Technical details
Key model parameters collected for quick review and comparison.
- Screen
- 10" IPS
- Resolution
- 1920 × 1200
- Processor (8 cores)
- 4 × Cortex-A72 + 4 × Cortex-A53
- Orientation
- landscape
- Dimensions
- 256.49 × 174.49 × 11 mm
- RAM
- 4 GB
- Storage
- 32 GB
- Power
- PoE + DC 12 V
- Wi-Fi
- yes
- Bluetooth
- 5.2
- Microphone
- yes
- Speaker
- 2 × 2 W
- SD card slot
- no
- Proximity wake sensor
- yes, around 1 m
- Frame colors
- black, silver, rose gold
- Wallpanel OS
- Wallpanel OS
- Base system
- Android 14 / AOSP
- OTA updates
- yes
- App installation
- APK, F-Droid, own repository
- SIP client
- yes
- SIP server on device
- in development
Ready mounting set
tablet, mounting frame, flush-mounted box, screws
System for dashboard use
Android 14/AOSP, OTA, APK, F-Droid and a custom app repository without Google Play/GMS.
Wallpanel OS
Prepared for permanent wall use
Wallpanel OS is developed for the Home Assistant panel role: a permanent dashboard, OTA updates, controlled app installation and no unnecessary consumer layer.
SIP and intercom
Intercom scenarios supported
The SIP client supports audio/video, DTMF, SIP messages and gate or door opening scenarios. SIP server functionality on the device is in development.
GPSR and safety
Manufacturer and product safety - Wallpanel S10
Key identification details, operating conditions and warnings for safe installation and use.
- Manufacturer
- Emel.tech – Patryk Czarnota
Altanka 26J, 96-500 Altanka, Poland
patryk@emel.tech - Identification
- Wallpanel S10; device serial identifier: MAC address
- Power
- IEEE 802.3af PoE or a compliant 12 V DC source according to the manual. A power supply is not included.
- Operating conditions
- Temperature from -5°C to 60°C; indoor use only.
- Box contents
- Wallpanel tablet, mounting frame, flush-mounted box and screws.
Warnings and safe use
- The product is intended for indoor use only.
- Protect the device from water, condensation, high humidity, dust and direct heat sources. Do not cover heat-dissipation areas.
- Disconnect power before installation. PoE, DC and in-wall cabling should be installed by a person with appropriate knowledge and qualifications where required.
- Use only a compatible wall box, frame and mounting hardware. Make sure the device is securely mounted and not exposed to flooding or excessive temperature.
- Do not use damaged hardware, cables or connectors. Do not open, modify or perform unauthorised repairs on the device.
- Install software only from trusted sources. Custom applications and modifications may affect safety and stability.
- Protect Home Assistant credentials and keep regular configuration backups.
- Keep required Wallpanel OS updates installed.
The device, packaging and documentation identify the model, manufacturer, device identifier, CE marking and required symbols and warnings.
EU B2B email order
Manual EU B2B ordering
EU sales outside Poland are B2B only with an active EU VAT number. The 309 EUR price is a manual-order reference; VAT status, shipping cost and invoice details are confirmed during email order processing.
Fulfillment
Delivery and B2B terms
The product may be available from stock or fulfilled in around 30 days, depending on current availability.
FAQ
Product questions
PowerIs PoE required?
No. The devices support PoE and DC 12 V, so the power method depends on your installation.
ConnectivityCan I use Wi-Fi?
Yes. Wi-Fi is available, although a wall installation should still be planned around stable power and wiring.
SystemDoes the device include Google Play?
No. Wallpanel OS is based on Android 14/AOSP and does not include Google Play or GMS for legal reasons.
AppsCan I install apps?
Yes. APK installation, F-Droid and a configured app source are supported.
EU salesCan I buy outside Poland?
EU sales outside Poland are B2B only with an active EU VAT number. Orders are currently handled by email while online EUR ordering and payment is being prepared.
Compare
Check which Wallpanel fits best
Compare all models, sizes, prices and features before choosing your device.
